CTEK UC 800 6V Smart Battery Charger

CTEK UC 800 6V Smart Battery Charger Review



CTEK UC 800 6V Smart Battery Charger Feature

  • Includes two interchangeable connection leads, one with clamps, and one with eyelet terminals; 5 year limited warranty
  • Four step, automatic switch charging, that allows for easy, convenient, no-watch battery charging
  • Charges 6-volt lead-acid batteries (Wet, MF, Gel and AGM) from 2Ah to 32Ah (charging), 12-100Ah (maintenance)
  • Maintenance pulse charging increases battery life and gives superb performance, and patented desulphation functionality allows for the recovery of slightly sulphated batteries
  • Compact design with mounting holes allows for permanent assembly, and the charger to be connected for months, makes this charger ideal for vintage cars, motorcycles, other vehicles with 6V batteries up to 100Ah
CTEK Power's UC 800 is a switch mode battery charger, with pulse maintenance and is a part of a series of professional battery chargers from CTEK Sweden AB. These chargers represent the latest technology within battery charging. A recent addition to the CTEK family of "the smartest battery chargers in the world," the UC 800 automatically and easily charges all smaller 6V lead-acid batteries, making it perfect for vintage cars, motorcycles and other 6V vehicles up to 100Ah.

CTEK logo
Four-step Automatic Battery Charging Cycle
There is no need for any specific knowledge of batteries or their charging methods; the UC 800 will take care of it. The UC 800 utilizes a four-step fully automatic charging cycle. First, patented desulphation functionality allows for possible reconditioning of batteries that have lost power due nonuse. This is followed by Bulk Charging, when 80% of charging takes place; then Absorption Charging which completes charging up to virtually 100%; and finally Pulse/Maintenance Charging, in which the battery receives a pulse of electricity when the voltage drops below 95%, keeping the battery in perfect condition indefinitely when it is not used. If the battery is loaded and the battery’s terminal voltage drops to 12.9V the charger automatically switches back to the beginning of the four-step cycle. Also, the UC 800 can be connected for months and it is specifically developed for seasonal vehicles.

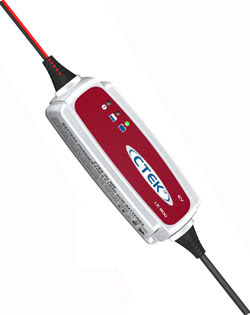

CTEK UC800 6V Battery Charger
Safe, automatic charging suitable for all-weather conditions.
View larger.

4-step automatic battery charging of the CTEK UC 800 6V Battery Charger expained
4-step battery charging explained.
View larger.

Alligator claps with cables and eyelet terminals included with the CTEK UC 800 6V Battery Charger
Charger includes alligator clips with cables for instant connections, and a set of battery cables with eyelet terminals for semi-permanent installation.
View larger.
Charging for All-weather Conditions
A very light and compact charger, but still extremely robust and water and dust resistant (IP65 classification), the UC 800 is designed to charge and maintain batteries, no matter the weather, temperature or situation. The UC 800 is certified for use between –4°F and +122°F. In order to make things easier and more convenient, the Comfort Connect (eyelet terminals) can be permanently connected to the vehicle’s battery.

Designed for Safety and Compatibility
All CTEK models are designed to consider the safety of the user. They are spark free, making the connection much easier and safer, considering the gases batteries normally produce. The UC 800 is also protected from reverse-polarity connections and is short-circuit proof. A red light on the charger will simply indicate that the charging cannot begin until the user has connected the charger correctly. In addition, unlike less-sophisticated chargers, there is no need to disconnect the battery from the overall vehicle system since the UC 800 is specially designed to not damage electronic systems.

Key Features:

  • Four step, automatic switch charging, with patented desulfation functionality to recondition many batteries that have lost power due to non use.
  • Charges 6-volt lead-acid batteries (Wet, MF, Gel and AGM) from 2Ah to 32Ah (charging), 1.2-100Ah (maintenance).
  • Maintenance pulse charging increases battery life and gives superb performance.
  • Pulse recovery of slightly sulphated batteries.
  • Low back current drain, low ripple and input voltage independent.
  • Delivered with two interchangeable connection leads, one with clamps, and one with eyelet terminals.
  • The charger can be connected for months, ideal for seasonal vehicles, and compact design with mounting holes allows for permanent assembly.
  • 5 year limited warranty.
The CTEK Battery Charger Line

US 800
UC 800
Multi US 3300
Multi US 7002
Input voltage AC:100–120VAC, 50–60Hz100–120VAC, 50–60Hz100–120VAC, 50–60Hz100–120VAC, 50–60Hz
Output voltage:Nominal:12VNominal: 6VNominal:12VNominal:12V
Efficiency:High 85%High 85%High 85%High 85%
Charging voltage:14.4V7.2V14.4V/14.7V14.4V/14.7V
Charging current:0.8A max0.8A max0.8/3.3A max7A max
Back current drain*:<1mAh<1mAh<1Ah per month<1Ah per month
Ripple**:~2%~2%~2%~4%
Ambient temperature:-4°F to +122°F-4°F to +122°F-4°F to +122°F-4°F to +122°F
Type of charger:4 step, fully automatic switch mode with pulse maintenance4 step, fully automatic switch mode with pulse maintenance4 step, fully automatic switch mode with pulse maintenance8–step, fully automatic switch mode with float pulse/maintenance
Type of batteries:12V lead-acid batteries (Wet, MF, AGM and most GEL)6V lead-acid batteries (Wet, MF, AGM and most GEL)12V lead-acid batteries (Wet, MF, AGM, GEL and Ca)12V lead-acid batteries (Wet, MF, AGM, GEL and Ca)
Battery capacity:1.2–32Ah (charging) 1.2–100Ah (maintenance)1.2–32Ah (charging) 1.2–100Ah (maintenance)1.2–75Ah (charging) 1.2–120Ah (maintenance)14-150Ah (charging)
14-225Ah (maintenance)
Dimensions (L x W x H):5½ x 2 x 1½ inches5½ x 2 x 1½ inches6½ x 2⅜ x 1½ inches8½ x 3½ x 1⅞ inches
Insulation class:IP65 (splash and dust proof)IP65 (splash and dust proof)IP65 (splash and dust proof)IP65 (splash and dust proof)
Weight:0.7lbs0.7lbs1.1lbs1.7lbs
* Back current drain is what drains the battery if the charger is connected without the power cord connected.
** Ripple describes the quality of the current and voltage. A high current ripple heats the battery and shortens its life. A linear charger has a current ripple of 70–400% which is much larger than the maximum 5% for a modern sealed battery. High voltage ripple could harm other equipment that is connected to the battery. UC 800 delivers voltage and current with very low ripple. The battery has a long service life and there is no risk of damage to other electronic devices connected to the battery.

What's in the Box
1-CTEK UC 800 6V battery charger, 1-set of battery cables with battery terminal clips, 1-set of battery cables with eyelet terminals, detailed instructions.

5-Year Limited Warranty
CTEK Sweden AB, provides a 5-year limited, nontransferable warranty issued from the date of purchase to the original purchaser of this product against defects in workmanship or materials.

About CTEK Power, Inc.
CTEK Power Inc. designs and develops a unique series of battery chargers and special solutions for all types of lead-acid batteries for both personal and professional use. Safety, simplicity and flexibility are key words and requirements that apply to all the products and solutions developed and sold by CTEK. CTEK has sold more than two million battery chargers worldwide, and has its own operations in the US and China, with main and development offices are located in Vikmanshyttan, Dalarna, Sweden.

The CTEK UC 800 is the charger that can give your old car a new life. A complete 6V battery charger in a diminutive format that charges everything from 1.2-100Ah. The UC 800 has a 5 year warranty, delivers 0.8-Ampere and is IP65 classified (Splash and dust proof). All CTEK battery chargers are electronic proof, non-sparking and reverse polarity and short circuit proof. IP 65. 110 Volt. Capacity 1.2-100 Ah. Charging current 0.8A. Dimensions 5 5/8-inch x 2-inch x 1 3/8-inch. Weight 0.7 pounds.
